Series 116-9 - 1.6" Planetary Gear Motor
(Plastic)
Typical Applications
- Printers
- Plotters
- Pumps
- Fans
- Cutting Tools
- Medical Devices
- Robotics
- Beverage Dispensing
- Gaming/Recreational Machines
Complete Motion Solution
For a complete motion solution, the is compatible with ElectroCraft's Universal and PRO Series drives.
The Hansen series 116-9 gear motor matches our 1.6" diameter DC brush motor with a plastic planetary gearbox. The motor is ideal for medical applications where strong, coordinated, accurate motion control is required. The planet gears share the load attached to the output shaft giving the planetary arrangement a higher torque to volume ratio with low backlash compared to a spur gear arrangement. Gear ratios up to 2653:1 are available. Encoders can also be added.
Additional Product Details
Series 116-9 - 1.6" Planetary Gear Motor (Plastic) Outline Drawing
Series 116-9 - 1.6" Planetary Gear Motor (Plastic) Standard Options
Series 116-9 - 1.6" Planetary Gear Motor (Plastic) Performance

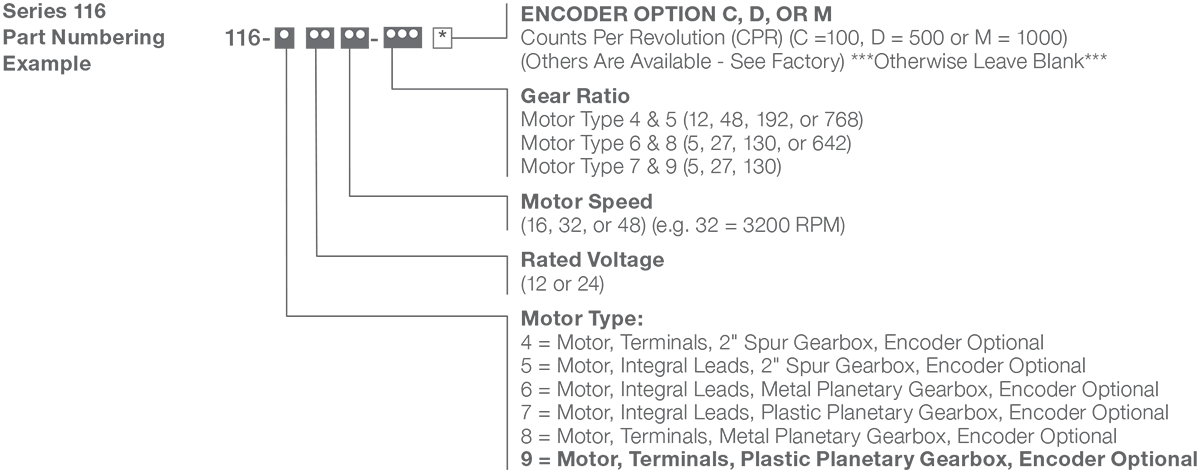

Series 116-9 - 1.6" Planetary Gear Motor (Plastic) Numbering Example
Series 116-9 - 1.6" Planetary Gear Motor (Plastic) CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| 116-1121627 | 1.7 | 3.7 | 12 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
| 116-1123227 | 2.2 | 8.4 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 116-1124827 | 2.8 | 13.3 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
| 116-1241627 | 0.9 | 2.1 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
| 116-1243227 | 1.2 | 4.6 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | ||
| 116-1244827 | 1.5 | 9.1 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 116-1121632 | 2.1 | 6.1 | 12 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | ||
| 116-1123232 | 3.2 | 16.7 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
| 116-1124832 | 3.9 | 24 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
| 116-1241632 | 1.0 | 3.1 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
| 116-1243232 | 1.6 | 7.5 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
| 116-1244832 | 2.0 | 12.7 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
